Beijing Chuanglong Century Science & Technology Development Co., Ltd.
3 Years
| Ask Lasest Price | |
| Brand Name : | Shenzhou Anfu |
| Model Number : | AF70 |
| Certification : | ISO,Test Report |
| Price : | US$45-55/pc |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 20000-40000/Month |
| Delivery Time : | 2-15days |
Company Information
Shenzhou Anfu is a pioneering high-tech company that excels in the design, development, and sales of advanced security System on Chip (SOC) solutions and related modules. The company is headquartered in Beijing and is recognized for its significant contributions to the security technology sector through cutting-edge research and innovative product offerings.
Core Competencies and Certifications:
Certifications: Shenzhou Anfu has earned several prestigious certifications, including:
Moreover, it is authorized by the State Password Administration for the production and sales of commercial password products.
Technological Expertise: The company's expertise lies in basic research and development in the security field, particularly on a 32-bit embedded high-performance CPU SOC chip design platform. This platform supports a variety of applications in information security and mobile payments.
Product and Service Portfolio:
Shenzhou Anfu's diverse product lineup is utilized across several industries, including:
Intellectual Property and Innovation:
Patents and Intellectual Property: Shenzhou Anfu holds 14 independent intellectual property rights, comprising:
Research and Development Commitment: The company consistently invests heavily in independent research and development, leading to the serial production of the AX200 chip series and the creation of various industry-specific security solutions.
Market Leadership and Impact:
With its advanced technology, strategic decision-making, and rigorous management standards, Shenzhou Anfu has established itself as a prominent player in the security encryption field. The company is a trusted supplier of independent security chips, modules, and intelligent security terminals across several key sectors, including:
Global Presence:
Shenzhou Anfu's innovative security solutions have a global reach, serving both domestic and international markets. The company's dedication to quality and continuous innovation solidifies its status as a leading high-tech enterprise in the rapidly evolving security technology landscape.

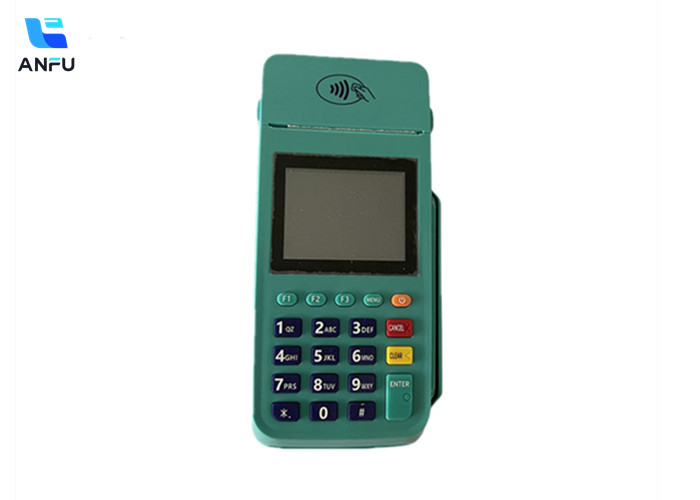

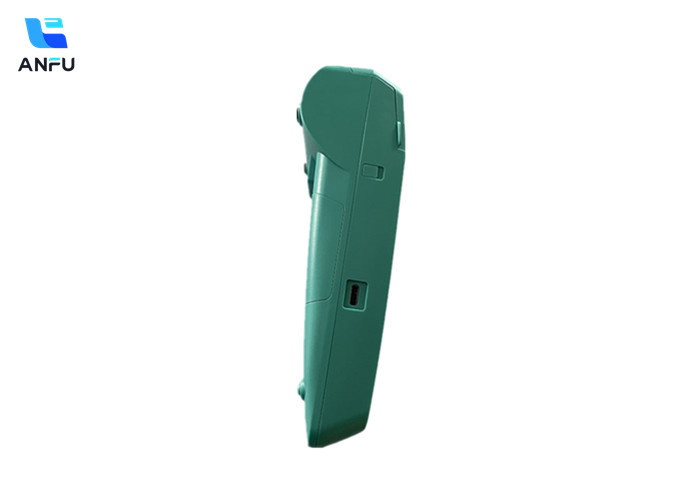

Specification
| Function | Describe |
| Processor | Main CPU: ARM Cortex-A5, maximum clock frequency 500MHz |
| Security CPU: 32 bit, ARM Cortex-M0, maximum clock frequency 96MHz | |
| Memory | Main CPU: 16MB Flash, 16MB RAM |
| Display | 2.4 "(320 × 240) TFT, resistive touch screen |
| RTC | Built in RTC to save the clock; Button battery life > 5 years |
| Signature pen | Touch screen handwriting signature pen, plug-in |
| Key | 20 physical keys: 1 power key, 12 digit / letter keys and 7 function keys,Cancel, clear, F1 / F2 / F3, menu) |
| Contact IC card | Comply with ISO 7816 and China financial integrated circuit (IC) card specification; The card holder can be used for more than 300000 times |
| Contactless card | 13.56MHz； Support iso14443 type A & B standard; Qpboc compliant |
| Magnetic stripe card
| Support three track data reading; It supports two-way card swiping. The swiping speed ranges from 10 cm / s to 100 cm / s. The service life of the magnetic stripe reader can reach more than 400000 times; It conforms to iso7811 |
| Camera(optional) | Built in 300 megapixel camera Support bar code, two-dimensional code scanning |
| Printer | High speed thermal printing, printing life is not less than 50km The specification is 58mm in width and 40mm in diameter |
| mobile communication | FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B；TDD-LTE:B40 GSM:B2/B3/B5/B8 (Recommended: South America) |
| FDD-LTE:B1/B3/B5/B7/B8/B20；TDD-LTE:B38/B40/B41 GSM:B3/B8 (Recommended: Eurasia/Middle East/Africa) | |
| Wifi(optional) | 802.11 a/b/g/n,2.4G |
| Bluetooth (optional) | BLE 4.0 and above |
| Card slots | 1 SIM + 2 SAMs | 2 SIMs + 1 SAM |
| External interface | 1 TYPE-C USB,For charging and serial communication |
| Battery(Optional) | 3.7V,2500mAh 3.7V,3000mAh |
| Buzzer | Support |
| Indication light | 1 power indicator + 4 contactless indicator |
| Physical size | 177mm*81mm*56mm |
| Weight | 340g |
| Certificate | PBOC3.0 L1&L2 EMV L1&L2,EMV CL L1 PCI PTS 5.X,SRED UPTS2.0 Security assessment of UnionPay terminal Mastercard PayPass ,Visa PayWave ,Discover D-PAS,American ExpressPay SRRC/CTA/TQM3CCEBISWPC |
| Products Name | MOQ(in the last 12month) |
| POS Device | 5 Pieces |
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
|
|
