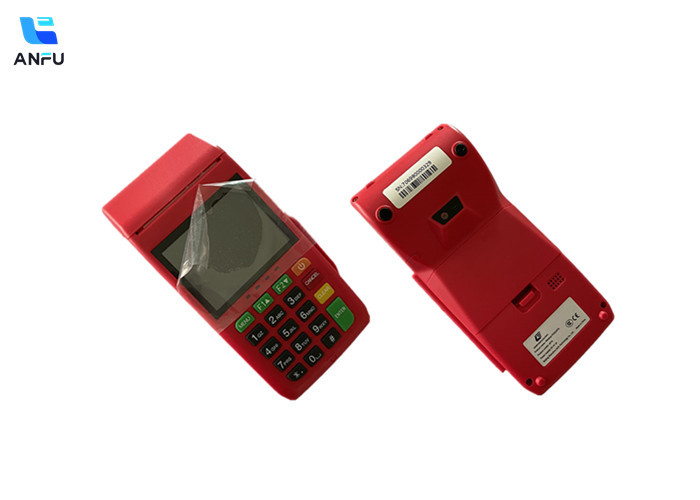

    Portable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDK

    Ask Lasest Price
    Brand Name : Shenzhou Anfu
    Model Number : AF75
    Certification : ISO,Test Report
    Price : US$45-55/pc
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 20000-40000/Month
    Delivery Time : 2-15days
    • Product Details
    • Company Profile

    Portable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDK

    Portable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDK


    Company Information


    Attention

    Beijing Shenzhou Anfu Company, a trailblazer in security technology, stands at the forefront of the high-tech industry. Specializing in security SOC chips, modules, and terminal products, Shenzhou Anfu is renowned for its cutting-edge innovations and industry-leading solutions.

    Interest

    With a foundation built on rigorous research and development, Shenzhou Anfu leverages advanced 32-bit embedded high-performance CPU SOC chip design platforms. Our products cater to diverse applications including information security, mobile payments, smart homes, and more. Our dedication to quality and innovation is validated by several prestigious certifications, including the National High-Tech Enterprise Certification and ISO 9001:2015 Quality Management System Certification.

    Desire

    Imagine a world where security is seamless, efficient, and reliable. Shenzhou Anfu's products, backed by 14 independent intellectual property rights including invention and utility model patents, transform this vision into reality. Our AX200 chip series and comprehensive industry security solutions set new standards in the fields of intelligent terminals, smart locks, and financial payment systems. Our commitment to independent research ensures we stay ahead, offering you the latest in security technology.

    Action

    Join the ranks of leading enterprises that trust Shenzhou Anfu for their security needs. Partner with us to secure your technological infrastructure with state-of-the-art solutions tailored to your industry. For more information or to discuss how we can help secure your future, contact Beijing Shenzhou Anfu Company today.

    Alternative Introduction (Problem-Agitate-Solution Method)

    Problem

    In today's digital age, security threats are more sophisticated and pervasive than ever. Businesses across sectors face the constant challenge of protecting sensitive information, ensuring secure transactions, and maintaining robust security systems.

    Agitate

    These challenges can lead to significant vulnerabilities, financial losses, and breaches of trust. Conventional security measures often fall short in addressing the complex and evolving nature of these threats. The need for advanced, reliable, and comprehensive security solutions has never been more critical.

    Solution

    Enter Beijing Shenzhou Anfu Company, your trusted partner in advanced security technology. Specializing in security SOC chips and modules, Shenzhou Anfu provides innovative solutions designed to tackle today's most pressing security challenges. With certifications from national and international bodies and a portfolio of products backed by independent intellectual property rights, Shenzhou Anfu is uniquely positioned to offer unparalleled security solutions. Our continuous investment in R&D ensures we deliver cutting-edge technology, tailored to your needs, and ready to protect your enterprise against future threats.

    For robust, reliable, and forward-thinking security solutions, turn to Beijing Shenzhou Anfu Company. Contact us today to learn more about how we can secure your technological landscape.


    Specification


    Operating SystemLinux 5.4
    RTOS
    ProcessorLinux:Cortex-A7 1.2 GHz
    RTOS:Cortex-A5 500MHz
    High performance 32-bit security CPU
    MemoryLinux:256MB Flash + 128MB RAM
    RTOS:8MB Flash + 16MB RAM
    Card ReadersMSR: ISO7810-7813, 3 tracks
    IC Card: ISO7816
    NFC Reader13.56MHz, ISO/IEC14443 TypeA&B,
    CameraRear camera:0.3 million pixels
    Display2.8" 320x240 TFT
    Resistive Touch Screen
    Wireless CommunicationLinux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
    RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS)
    Batteryemovable Lithium polymer
    battery, 3.7V/2500mAh | 3.7V/3200mAh (optional)
    PrinterHigh speed thermal printing, printing lifeis not less than 50km
    The specification is 58mm in width and 40mm in diameter
    Card Slots
    SIM / SAM
    SIM Card x 2 + PSAM X 1
    PositioningX
    KeypadNumeric x 10
    Function x 8
    Power x 1
    Audio1 Buzzer
    PortsLinux:1 Type-C USB OTG | USB 2.0
    RTOS:11 Type-C | USB 2.0
    Indicator lights4 Work indicator lights
    AdapterInput: AC 100-240V, 50/60Hz
    Output: 5V/1A
    Scanning charging baseX
    Weight340g
    Physical size177mm*81mm*56mm
    EnvironmentStorage temperature: -20°C to 60°C
    Operating temperature: -10°C to 50°C
    Humidity: ≤95%
    CertificationsEMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
    PCI PTS 6.x / TQM / CE
    Display2.8"(320 x 240)TFT, resistive touch screen
    WlFl(optional)802.11 a/b/g/n,2.4G
    Mobile communicationLinux:4G CAT4,WCDMA,GSM
    RTOS:4G CAT1,GSM
    South American Version
    FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
    TDD-LTE:B40
    GSM:B2/B3/B5/B8
    European Version
    FDD-LTE:B1/B3/B5/B7/B8/B20;
    TDD-LTE:B38/B40/B41
    GSM:B3/B8
    Contact lC cardComply with lS0 7816 and China financial
    integrated circuit (lC) card specification;
    The card holder can be used for more than300000 times
    Magnetic stripe cardSupport three track data reading;
    It supports two-way card swiping.
    The swipingspeed ranges from 10 cm /s to 100 cm /s.
    The service life of the magnetic stripe reader canreach more than 400000 times;
    It conforms to iso78ll and iso7812 standards
    RTCBuilt in RTC to save the clock; Buttonbattery life > 5 years

    Portable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDKPortable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDKPortable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDK

    Real Case for Lower MOQ:

    Products NameMOQ(in the last 12month)
    POS Device5 Pieces

    The competitive advantage of product line:

    Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.


    Certificate


    Portable POS Terminal with 58mm Thermal Printer Capacitive Touch Screen Linux RTOS POS System with Software SDK


    FAQ


    1. Q: How can I get the touch pos terminal sample to check quality?

    After price comfirmation, you can order pos samples to check quality.

    Contact:whatsapp +86 18011965815


    2. Q. How can we promise you the quality ?
    Each of our products will be FULL tested and Inspected before it shipped,


    3. Q: How can I become your agent?

    A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.


    4. Q: Who will pay the postage of the returns?

    A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)


    5. Q:What is your warranty?

    We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
